Настройка lm_sensors чипа f71889a

[PastorDi]

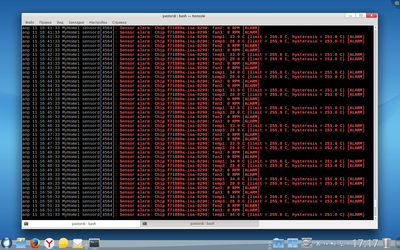

Меня вот задолбало в логах смотреть каждую минуту Алармы от сенсоров.
Решил немного погуглить. Нашел единсвенный ресурс http://vaxxi.net/log/msi-z77a-gd65-lm-sensors-conf/ на его основе и сделал.

Код: Выделить всё

апр 11 16:45:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan2: 0 RPM [ALARM]
апр 11 16:45:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan3: 0 RPM [ALARM]
апр 11 16:45:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp1: 33.0 C (limit = 255.0 C, hysteresis = 251.0 C) [ALARM]
апр 11 16:45:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp3: 28.0 C (limit = 255.0 C, hysteresis = 253.0 C) [ALARM]
апр 11 16:46:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan2: 0 RPM [ALARM]
апр 11 16:46:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan3: 0 RPM [ALARM]
апр 11 16:46:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp1: 33.0 C (limit = 255.0 C, hysteresis = 251.0 C) [ALARM]
апр 11 16:46:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp3: 28.0 C (limit = 255.0 C, hysteresis = 253.0 C) [ALARM]
апр 11 16:47:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan2: 0 RPM [ALARM]
апр 11 16:47:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan3: 0 RPM [ALARM]
апр 11 16:47:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp1: 33.0 C (limit = 255.0 C, hysteresis = 251.0 C) [ALARM]
апр 11 16:47:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp3: 28.0 C (limit = 255.0 C, hysteresis = 253.0 C) [ALARM]
апр 11 16:48:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan2: 0 RPM [ALARM]
апр 11 16:48:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan3: 0 RPM [ALARM]
апр 11 16:48:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp1: 34.0 C (limit = 255.0 C, hysteresis = 251.0 C) [ALARM]
апр 11 16:48:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp3: 28.0 C (limit = 255.0 C, hysteresis = 253.0 C) [ALARM]
апр 11 16:49:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan2: 0 RPM [ALARM]
апр 11 16:49:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: fan3: 0 RPM [ALARM]
апр 11 16:49:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp1: 34.0 C (limit = 255.0 C, hysteresis = 251.0 C) [ALARM]
апр 11 16:49:33 MyHome1 sensord[4564]: Sensor alarm: Chip f71889a-isa-0290: temp3: 28.0 C (limit = 255.0 C, hysteresis = 253.0 C) [ALARM]
....

И вывод sensors был таким:

Код: Выделить всё

[root@MyHome1 pastordi]# sensors
acpitz-virtual-0
Adapter: Virtual device
temp1:        +27.8°C  (crit = +106.0°C)
temp2:        +29.8°C  (crit = +106.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Physical id 0:  +35.0°C  (high = +85.0°C, crit = +105.0°C)
Core 0:         +33.0°C  (high = +85.0°C, crit = +105.0°C)
Core 1:         +34.0°C  (high = +85.0°C, crit = +105.0°C)
Core 2:         +35.0°C  (high = +85.0°C, crit = +105.0°C)
Core 3:         +33.0°C  (high = +85.0°C, crit = +105.0°C)

f71889a-isa-0290
Adapter: ISA adapter
+3.3V:        +3.33 V
in1:          +0.82 V  (max =  +2.04 V)
in2:          +0.00 V
in3:          +0.97 V
in4:          +1.10 V
in5:          +0.75 V
in6:          +1.06 V
3VSB:         +3.34 V
Vbat:         +3.30 V
fan1:        2752 RPM
fan2:           0 RPM  ALARM
fan3:           0 RPM  ALARM
temp1:        +34.0°C  (high = +255.0°C, hyst = +251.0°C)  ALARM (CRIT)
                       (crit = +255.0°C, hyst = +251.0°C)  sensor = transistor
temp2:          FAULT  (high = +255.0°C, hyst = +251.0°C)
                       (crit = +255.0°C, hyst = +251.0°C)  sensor = transistor
temp3:        +28.0°C  (high = +255.0°C, hyst = +253.0°C)  ALARM (CRIT)
                       (crit = +255.0°C, hyst = +253.0°C)  sensor = transistor

[root@MyHome1 pastordi]#

Пришлось подшаманить немного с /etc/sensors3.conf
Теперь секция с моим чипом выглядет так:
(т.к. всеравно один вентиль у меня, других нету)

Код: Выделить всё

chip "f71808e-*" "f71808a-*" "f71862fg-*" "f71869-*" "f71869a-*" "f71882fg-*" \
     "f71889fg-*" "f71889ed-*" "f71889a-*"

    label in0 "+3.3V"
    label in7 "3VSB"
    label in8 "Vbat"

#    compute in0  @*2, @/2
#    compute in7  @*2, @/2
#    compute in8  @*2, @/2

    label temp1 "Temp1"
    label temp3 "Temp3"
    ignore temp2

#    label fan1 "CPU FAN"
#    label fan2 "SYSFAN1"
#    label fan3 "SYSFAN2"
    ignore fan2
    ignore fan3

Всё.
И sensors теперь нормальный:

Код: Выделить всё

[root@MyHome1 pastordi]# sensors
acpitz-virtual-0
Adapter: Virtual device
temp1:        +27.8°C  (crit = +106.0°C)
temp2:        +29.8°C  (crit = +106.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Physical id 0:  +36.0°C  (high = +85.0°C, crit = +105.0°C)
Core 0:         +36.0°C  (high = +85.0°C, crit = +105.0°C)
Core 1:         +29.0°C  (high = +85.0°C, crit = +105.0°C)
Core 2:         +35.0°C  (high = +85.0°C, crit = +105.0°C)
Core 3:         +34.0°C  (high = +85.0°C, crit = +105.0°C)

f71889a-isa-0290
Adapter: ISA adapter
+3.3V:        +1.67 V
in1:          +0.82 V  (max =  +2.04 V)
in2:          +0.00 V
in3:          +0.97 V
in4:          +1.10 V
in5:          +0.75 V
in6:          +1.06 V
3VSB:         +1.67 V
Vbat:         +1.65 V
fan1:        2752 RPM
Temp1:        +34.0°C  (high = +255.0°C, hyst = +251.0°C)  ALARM (CRIT)
                       (crit = +255.0°C, hyst = +251.0°C)  sensor = transistor
Temp3:        +28.0°C  (high = +255.0°C, hyst = +253.0°C)  ALARM (CRIT)
                       (crit = +255.0°C, hyst = +253.0°C)  sensor = transistor

[root@MyHome1 pastordi]#

В логи все равно сыпется Алармы. Что с ним делать? Не знаю.

В ядре поддрежки его нету, как я понял.

Код: Выделить всё

[root@MyHome1 pastordi]# zcat /proc/config.gz | grep I2C_I801
CONFIG_I2C_I801=m
[root@MyHome1 pastordi]# zcat /proc/config.gz | grep f71889a-isa-0290
[root@MyHome1 pastordi]# zcat /proc/config.gz | grep f71889a-isa
[root@MyHome1 pastordi]# zcat /proc/config.gz | grep f71889a
[root@MyHome1 pastordi]#

Нашел какой модуль подгружается:

Код: Выделить всё

[root@MyHome1 pastordi]# zcat /proc/config.gz | grep -i F71882
CONFIG_SENSORS_F71882FG=m
[root@MyHome1 pastordi]#

Значит касяк где-то в модуле. Либо я чего-то не догоняю..

Проба тут: https://linux-hardware.org/?probe=48f5301463

[keleg]

Фикс подгрузки модулей из тестинга стоит?

[PastorDi]

Фикс подгрузки модулей из тестинга стоит?

Стоит. Модуль то подгружается. Все ОК. Только спамит в логи каждую минуту...

[PastorDi]

Ага, раскопал в чем штука.
Надо было еще подправить температуры Максимальные и Кричические.
Автоматом выставлялось (как можно видеть выше) 250/255 градусов. По этому и "Орало".
Залез в BIOS, посмотрел какие там пределы температур, и выставил в /etc/sensors3.conf
В итоге получилось так:
(для чипа f17889a-*)

Код: Выделить всё

chip "f71808e-*" "f71808a-*" "f71862fg-*" "f71869-*" "f71869a-*" "f71882fg-*" \
     "f71889fg-*" "f71889ed-*" "f71889a-*"

    label in0 "+3.3V"
    label in7 "3VSB"
    label in8 "Vbat"

#    compute in0  @*2, @/2
#    compute in7  @*2, @/2
#    compute in8  @*2, @/2

    label temp1 "Temp1"
    set temp1_max   85
    set temp1_crit  105

    label temp3 "Temp3"
    set temp3_max   85
    set temp3_crit  105

    ignore temp2
    label fan1 "CPU FAN"
#    label fan2 "SYSFAN1"
#    label fan3 "SYSFAN2"
    ignore fan2
    ignore fan3

У кого есть системные кулеры, раскомментируют строки: label fan2 "SYSFAN2" и и закоментят ignore fan2 и т.д.

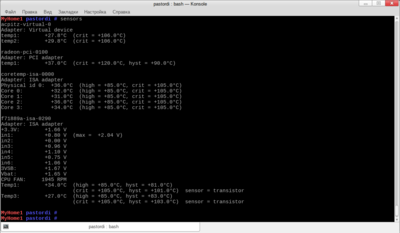

Теперь все выглядет ОТЛИЧНО! И не сыпятся алармы!

[Barmalei]

У меня по дефолту усе. Почему то не показывает напряжения и куллеры. Как их влючить?

[PastorDi]

У меня по дефолту усе. Почему то не показывает напряжения и куллеры. Как их влючить?

Пройти тест:

Код: Выделить всё

sensors-detect

Ответить на вопросы, и потом:

Код: Выделить всё

sensors -s

И смотреть, как обычно: sensors что поулчилось.

[Barmalei]

Сделал ответив везде Y ибо на английском ничего не понял.

Код: Выделить всё

# sensors-detect revision 6277 (2015-03-03 19:48:20 +0300)
# System: LENOVO 20236 [Lenovo G500] (laptop)
# Board: LENOVO INVALID
# Kernel: 3.14.33-nrj-laptop-1rosa x86_64
# Processor: Intel(R) Pentium(R) CPU 2030M @ 2.50GHz (6/58/9)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): y
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Intel digital thermal sensor...                             Success!
    (driver `coretemp')
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): y
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No

Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no): y
Probing for `National Semiconductor LM78' at 0x290...       No
Probing for `National Semiconductor LM79' at 0x290...       No
Probing for `Winbond W83781D' at 0x290...                   No
Probing for `Winbond W83782D' at 0x290...                   No

Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no): y
Using driver `i2c-i801' for device 0000:00:1f.3: Intel Panther Point (PCH)
Module i2c-dev loaded successfully.

Next adapter: Radeon i2c bit bus 0x90 (i2c-0)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x91 (i2c-1)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x92 (i2c-2)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x93 (i2c-3)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x94 (i2c-4)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x95 (i2c-5)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x96 (i2c-6)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x97 (i2c-7)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus ssc (i2c-8)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus vga (i2c-9)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus panel (i2c-10)
Do you want to scan it? (yes/NO/selectively): y
Client found at address 0x4f
Probing for `National Semiconductor LM75'...                No
Probing for `National Semiconductor LM75A'...               No
Probing for `Dallas Semiconductor DS75'...                  No
Probing for `Maxim MAX6642'...                              No
Probing for `Texas Instruments TMP421'...                   No
Probing for `Texas Instruments TMP422'...                   No
Probing for `Texas Instruments TMP435'...                   No
Probing for `Texas Instruments TMP441'...                   No
Probing for `Maxim MAX6633/MAX6634/MAX6635'...              Success!
    (confidence 2, driver `lm92')
Probing for `NXP/Philips SA56004'...                        No

Next adapter: i915 gmbus dpc (i2c-11)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus dpb (i2c-12)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus dpd (i2c-13)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: DPDDC-B (i2c-14)
Do you want to scan it? (yes/NO/selectively): y


Now follows a summary of the probes I have just done.
Just press ENTER to continue:

Driver `coretemp':
  * Chip `Intel digital thermal sensor' (confidence: 9)

Driver `lm92':
  * Bus `i915 gmbus panel'
    Busdriver `drm', I2C address 0x4f
    Chip `Maxim MAX6633/MAX6634/MAX6635' (confidence: 2)

Do you want to overwrite /etc/sysconfig/lm_sensors? (YES/no): y
Unloading i2c-dev... OK
Unloading cpuid... OK

Результат нулевой

Код: Выделить всё

acpitz-virtual-0
Adapter: Virtual device
temp1:        +49.0°C  (crit = +127.0°C)

radeon-pci-0100
Adapter: PCI adapter
temp1:            N/A  (crit = +120.0°C, hyst = +90.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Physical id 0:  +51.0°C  (high = +72.0°C, crit = +90.0°C)
Core 0:         +51.0°C  (high = +72.0°C, crit = +90.0°C)
Core 1:         +50.0°C  (high = +72.0°C, crit = +90.0°C)

[PastorDi]

Попробуйте так:
Открываете /etc/sensors3.conf
Находите строки (в начале они): chip "lm78-*" "lm79-*" "lm80-*" "lm96080-*"
Ниже будет строка: label temp1 "M/B Temp" после нее дописываете:

Код: Выделить всё

chip "lm92-*"

   label temp1 "CPU Temp"
   set temp1_min 14
   set temp1_max 85
   set temp1_crit 125

# Change limits as you see fit
#   set temp1_min 14
#   set temp1_max 60
#   set temp1_crit 72
# Hysteresis is computed from critical limit
# The same relative hysteresis is used for all of low, high
# and critical limits.
#   set temp1_crit_hyst 70

Записываете файл.
Далее открываете файл: /etc/sysconfig/lm_sensors
И находите строчку: HWMON_MODULES= значения там в кавычках.
Вот в кавычках стираете то что там у вас есть, и пишите следующее: coretemp lm92
Сохраняете.
Перегружаетесь. И смотрите.

У вас дольно получиться так:

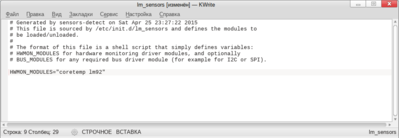

/etc/sysconfig/lm_sensors

и

/etc/sensors3.conf

Описание датичков вашего чипа тут: http://www.gaw.ru/pdf/Maxim/sensor/MAX6633-MAX6635.pdf

PS. Вообще надо бы в sensors3.conf добавить еще описание датчиков отсюда: http://www.delixs.de/dwiki/index.php?ti ... sors3.conf
у нас много нету, что там описано.

[Barmalei]

Причем тут температуры и напряжения питание со скоростью куллеров? Температуры показывает у меня.

[Галахов Роман]

Сделал ответив везде Y ибо на английском ничего не понял.

# sensors-detect revision 6277 (2015-03-03 19:48:20 +0300)
# System: LENOVO 20236 [Lenovo G500] (laptop)
# Board: LENOVO INVALID
# Kernel: 3.14.33-nrj-laptop-1rosa x86_64
# Processor: Intel(R) Pentium(R) CPU 2030M @ 2.50GHz (6/58/9)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): y
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Intel digital thermal sensor... Success!
(driver `coretemp')
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): y
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No

Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no): y
Probing for `National Semiconductor LM78' at 0x290... No
Probing for `National Semiconductor LM79' at 0x290... No
Probing for `Winbond W83781D' at 0x290... No
Probing for `Winbond W83782D' at 0x290... No

Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no): y
Using driver `i2c-i801' for device 0000:00:1f.3: Intel Panther Point (PCH)
Module i2c-dev loaded successfully.

Next adapter: Radeon i2c bit bus 0x90 (i2c-0)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x91 (i2c-1)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x92 (i2c-2)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x93 (i2c-3)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x94 (i2c-4)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x95 (i2c-5)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x96 (i2c-6)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: Radeon i2c bit bus 0x97 (i2c-7)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus ssc (i2c-8)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus vga (i2c-9)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus panel (i2c-10)
Do you want to scan it? (yes/NO/selectively): y
Client found at address 0x4f
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP422'... No
Probing for `Texas Instruments TMP435'... No
Probing for `Texas Instruments TMP441'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... Success!
(confidence 2, driver `lm92')
Probing for `NXP/Philips SA56004'... No

Next adapter: i915 gmbus dpc (i2c-11)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus dpb (i2c-12)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: i915 gmbus dpd (i2c-13)
Do you want to scan it? (yes/NO/selectively): y

Next adapter: DPDDC-B (i2c-14)
Do you want to scan it? (yes/NO/selectively): y


Now follows a summary of the probes I have just done.
Just press ENTER to continue:

Driver `coretemp':
* Chip `Intel digital thermal sensor' (confidence: 9)

Driver `lm92':
* Bus `i915 gmbus panel'
Busdriver `drm', I2C address 0x4f
Chip `Maxim MAX6633/MAX6634/MAX6635' (confidence: 2)

Do you want to overwrite /etc/sysconfig/lm_sensors? (YES/no): y
Unloading i2c-dev... OK
Unloading cpuid... OK

Результат нулевой

acpitz-virtual-0
Adapter: Virtual device
temp1: +49.0°C (crit = +127.0°C)

radeon-pci-0100
Adapter: PCI adapter
temp1: N/A (crit = +120.0°C, hyst = +90.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Physical id 0: +51.0°C (high = +72.0°C, crit = +90.0°C)
Core 0: +51.0°C (high = +72.0°C, crit = +90.0°C)
Core 1: +50.0°C (high = +72.0°C, crit = +90.0°C)

Barmalei прошу почитать темы http://forum.rosalab.ru/viewtopic.php?f=9&t=1924 и http://forum.rosalab.ru/viewtopic.php?f=9&t=1759. Исправьте свои сообщения
